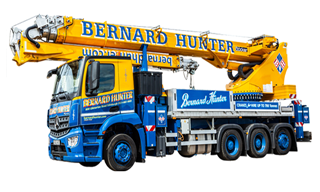

Bocker Light Truck Crane

The Bocker truck crane AK 46/6000 is the top model among the Bocker aluminium truck cranes and provides an unrivalled combination of strong performance, enormous working ranges and outstanding efficiency. Having a maximum range of 39meters with 250kg or 26m with 1,000kg payload, this crane accommodate most lifting requirements.

The crane is also extremely agile thanks to its compact and lightweight construction allowing manoeuvring in extremely challenging circumstances.

bocker

Max. Lifting Capacity:

6 tonne @ 8m
1 tonne @26m
250kg @ 39.3m

Outrigger Base:

6.43 x 6.06m

Main Boom Length:

44m opt. 46m

Gross vehicle weight:

26 tonne

Axles:

3

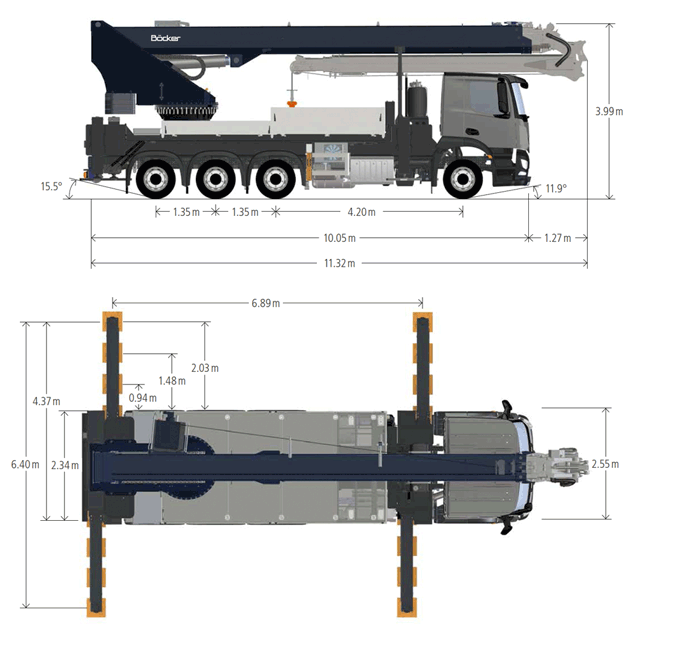

Bocker Light Truck Crane Dimensions

bocker_dim
